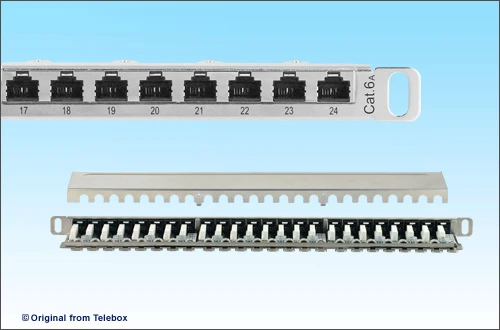

Specification: Qualified Screened Class EA/Category 6A
Permanent Link and Channel of ANSI/TIA-568-C.2
IEC 60603-7-51
ISO/IEC 11801 2nd edition
Cenelec EN 50173-1
Electrical:
Current Rating: 1.5 Amps
Insulation resistance: 500 Mohms minimum
Contact resistance: 20 mohms maximum
DC resistance: 0.1 ohms maximum
Shield transfer impedance @ 100 MHz 2000 mohms Max.
Mechanical:
Plug insertion life: 750 Cycles minimun
Plug & Jack contact force: 100 Grams minimun Using FCC-Approved Plug
Plug retention force: 30 lbs minimun
Temperature: -40ºF to 150ºF (-40ºC to 68ºC )
Physicals:
Frame : 1.5t SPCC, Nickel Plating
Shield : 0.25mm Thickness Copper Alloy Plated with Tin
Plastic : High Impact Flame Retardant Plastic,
PCB: FR4, 1.0mm Thickness
Jack Wiring:Ø0.46mm Phosphor Bronze Gold Over Nickel Plating
Connector: Insulation Displacement Connector
(IDC) Accept #22-26 AWG Solid Wire
Covershield : 1.0t SPCC, Nickel Plating
檔案下載：MLP246ASX
