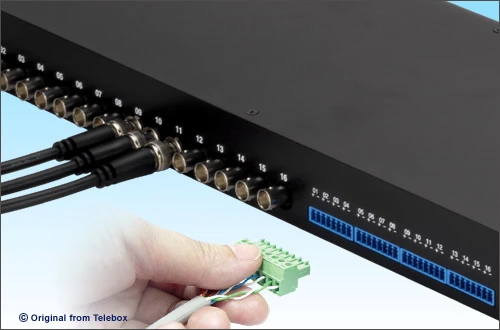

The idea of 16-port Video Transceiver Hub (PH1621) is for a wide variety of security and surveillance applications that require high-density CCTV system. By using Category 5 (or better) Unshielded Twisted Pair (UTP) LAN cable, this hub can obtain the best performance. It includes with built-in surge suppression to protect video equipment against damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing “hum-bars”. Thereby, it allows CCTV camera and monitoring equipment to be deployed more cost-effective, better image, and no power required using structured cabling techniques.
All our Hubs are 100% test for reliability and durability to guarantee your signal integrity.
Features:
• Allows maximum distance of color video over 1000 ft (305m) of Cat.5 UTP cable.
• Includes surge protection
• Support NTSC, PAL, and SECAM systems
• Coexists with qualified camera with built-in UTP transmitter
• Includes female BNC and detachable terminal blocks
• Includes 16 two-foot coax Jumper Cables
• Limited Lifetime warranty
Application:
Security and Surveillance
Department Store Security
Casino Security
Hospitals and Airports
School Campuses檔案下載：PH1621
