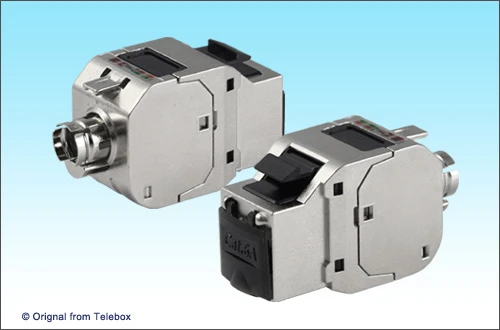

Cat.6A STP KSJ

Specification:
Screened Category 6A Permanent Link and Channel performance
ANSI/TIA/EIA-568-B.2-10

Electrical:
Current Rating: 1.5 Amps
Insulation Resistance: 500 Mohms Minimum
Contact Resistance: 20 mohms Maximum
DC Resistance: 0.1 ohms Maximum

Mechanical:
Plug Insertion Life: 750 Cycles Minimum
Plug & Jack Contact Force: 100 Grams Minimum
Using FCC-Approved Plug
Plug Retention Force: 30 lbs Minimum
Temperature: -40°F to 150°F(-40°C to 68°C)

Physicals:
Housing & Cap: Zinc Alloy Die-Casting
Cover & holder: High Impact Flame Retardant Plastic,
UL 94V-0 Rated
Springshielded: 0.25 Thinkness SUS301
PCB: FR4, 1.6mm Thickness
Jack Wiring: 0.42mm Thickness Phosphor Bronze
Gold Over Nickel Plating
Connector: Insulation Displacement Connector
(IDC) Accept #23~26 AWG Solid Wire

檔案下載：TA906ADS
